ĐẦU ĐO TỪ TÍNH KANETEC TM-801PRB
.jpg)

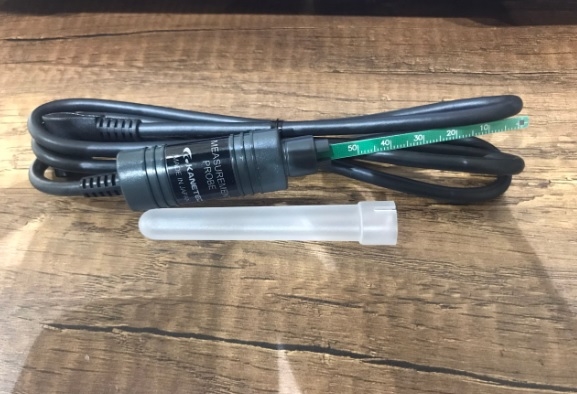

MEASUREMENT PROBE FOR TESLA METER [Model TM-801PRB/AXL]
.jpg)
.jpg)
A probe dedicated to TM-801. Please keep this probe as a spare; it can be replaced without troublesome calibration. In addition to the standard PRB (transverse type), an axial type (AXL) capable of measurement in the vertical direction and having higher durability is optionally available.
|
.jpg) An example of usage of TM-801AXL |
.jpg)
.jpg)
| [mm(in)] | ||||
| Model | Applicable Model | Tip Dimensions | Cord Length | Mass |
| TM-801PRB | Only for TM-801* | (T)1.0(0.03) X (W)3.5(0.13) X (L)65(2.55) | 1000(39.3) | 50g/(0.11lb) (Including probe cap) |
| TM-801AXL | φ13(0.51) X 55(2.16) | |||
| *Can be used with Kanetec's conventional TM-501,TM-601and TM-701. | ||||
