model: Peacock G-0.4N, Peacock G-2.4N, Peacock G-20, Peacock G-30, Peacock H-0.4N, Peacock H-2.4N, Peacock H-20, Peacock H-30



Specifications
Model		Graduation (mm)	Range (mm)	Throat depth (mm)	Accuracy (µm)	Contact Point		Measuring force less than (N)
						Dia (mm)	Parallelism (µm)
G-0.4N		0.01	0 - 10	20	±20	10	5	Initial pressure 0.4N
G-2.4N		0.01	0 - 10	20	±20	10	5	Final pressure 2.4N
G-20		0.01	0 - 10	20	±20	20 (metal)	15	1.8
G-30		0.01	0 - 10	20	±20	30 (metal)	20	1.8
H-0.4N		0.01	0 - 10	120	±20	10	5	Initial pressure 0.4N
H-2.4N		0.01	0 - 10	120	±20	10	5	Final pressure 2.4N
H-20		0.01	0 - 10	120	±20	20 (metal)	15	1.8
H-30		0.01	0 - 10	120	±20	30 (metal)	20	1.8
Examples of modification for contact point and anvil

Applied Dial Thickness Gauges 0.01mm type
Model G-0.4N Graduation 0.01mm Range 0 - 10mm Measuring force initial pressure 0.4N Ø10mm flat contact point and anvil (ceramic)	Model G-2.4N Graduation 0.01mm Range 0 - 10mm Measuring force final pressure 2.4N Ø10mm flat contact point and anvil (ceramic)
Model H-0.4N Graduation 0.01mm Range 0 - 10mm Measuring force initial pressure 0.4N Ø10mm flat contact point and anvil (ceramic)	Model H-2.4N Graduation 0.01mm Range 0 - 10mm Measuring force final pressure 2.4N Ø10mm flat contact point and anvil (ceramic)
Model G-20 Graduation 0.01mm Range 0 - 10mm Ø20mm flat contact point and anvil (metal)	Model G-30 Graduation 0.01mm Range 0 - 10mm Ø30mm flat contact point and anvil (metal)

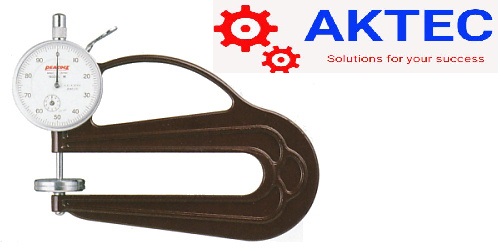

Model H-20 Graduation 0.01mm Range 0 - 10mm Ø20mm flat contact point and anvil (metal)	Model H-30 Graduation 0.01mm Range 0 - 10mm Ø30mm flat contact point and anvil (metal)
