Tape nối liệu tĩnh điện ESD 8mm FUJI dùng trong nhà máy Samsung

1.
2.

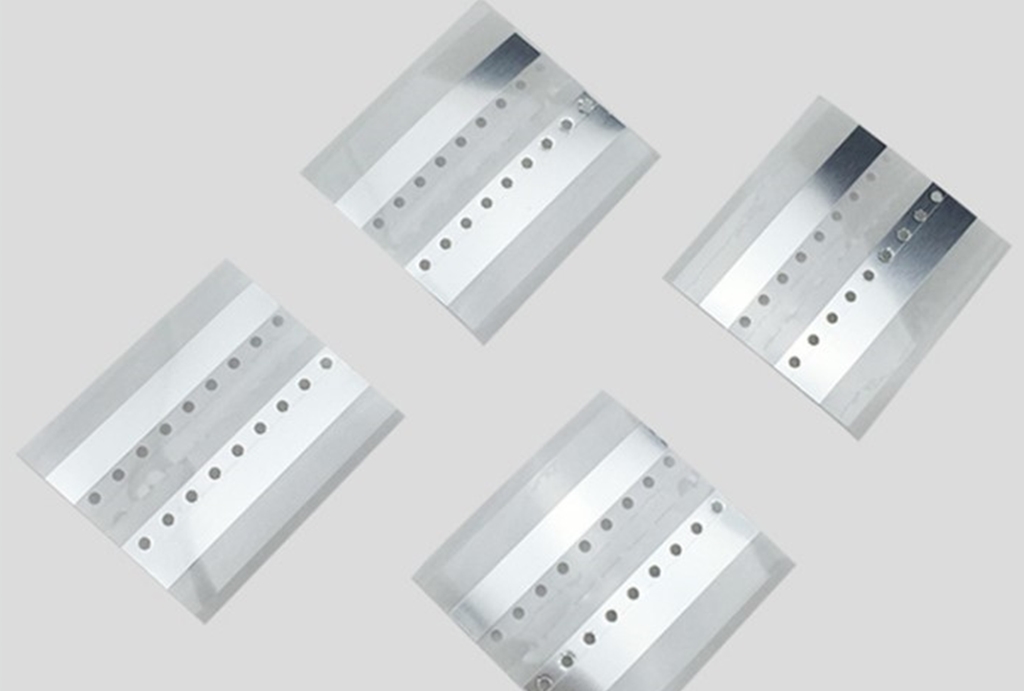

M2708 ESD FUJI Splice Tape 8mm(500pcs/pack)

Kích thước 8mm/12mm/16mm/24mm/32mm SMT ESD & Conductive Silver double Splice Tape  for Fuji Machine

Product Description



Product Description:

1)ESD Function splice Tape

2color is Silver and can be Conductive

3) double splice tape with 9 holes for accurate jointing,total:18 holes.
4) Additional strip strengthen connected tape, which will not be broken off under tension

5) A Special splicing solution for FUJI machine.


Băng dính chịu nhiệt máy SMT Fuji

Part Number	Description of Goods	Quantity	Application
SMS27080001C	Fuji silver splice tape, 8mm	500pcs /box	For 8mm carrier tape
SMS27120001C	Fuji silver splice tape, 12mm	500pcs /box	For 12mm carrier tape
SMS27160001C	Fuji silver splice tape, 16mm	500pcs /box	For 16mm carrier tape
SMS27240001C	Fuji silver splice tape, 24mm	250pcs /box	For 24mm carrier tape





Color	Silver	Insulating resistance	≥106
Backing Thicness	0.025mm	Peel strength	1.8—2.3 Kg / inch
Strength of extension	4.8mm, >50MPa	Net weight	0.17g---0.19g
Extending rate	20-30	Breakdown voltage	<1000V
Fire-retardant	94v-0	Able to bear solvents	Excellent
Insulating grade	H	CTI	≤2 PPB
Total  Thickness	<0.06	Bear temperature	<100℃ /30min,No residual glue





Advantages:

1)Using imported tape in high strength and high adhesive.

2)Precision aie cut in up and down sid.

3)Never touch adhesive tape side while using.

4).The placement side use for joint the paper tape and the pvc tape, then get the perfect splicing effect.

Related Products

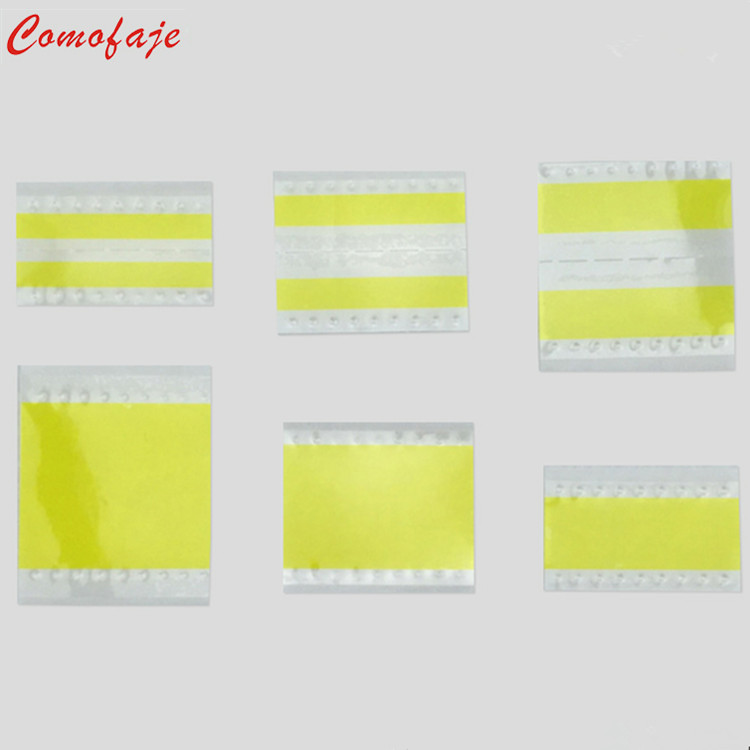

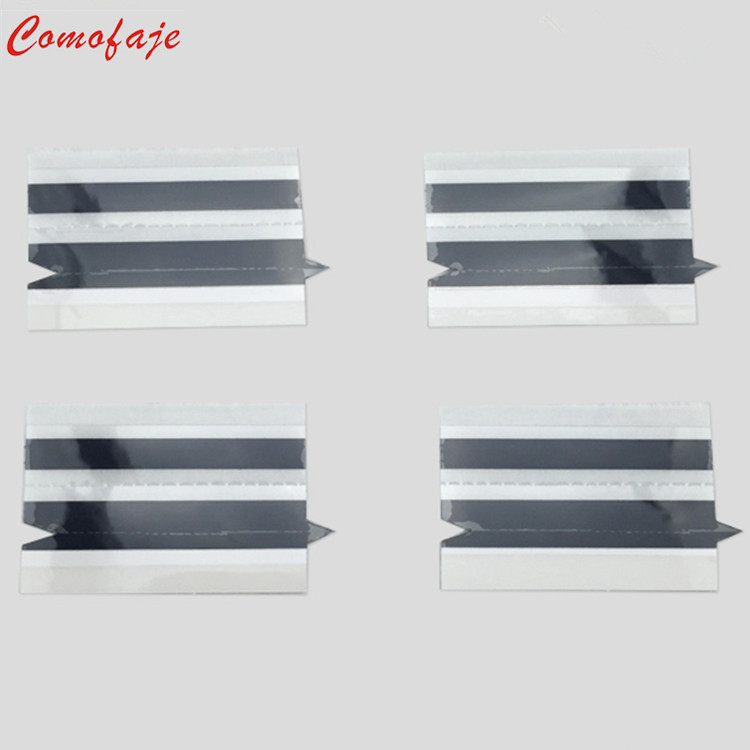

SMT double splice tape	SMT Panasonic splice tape

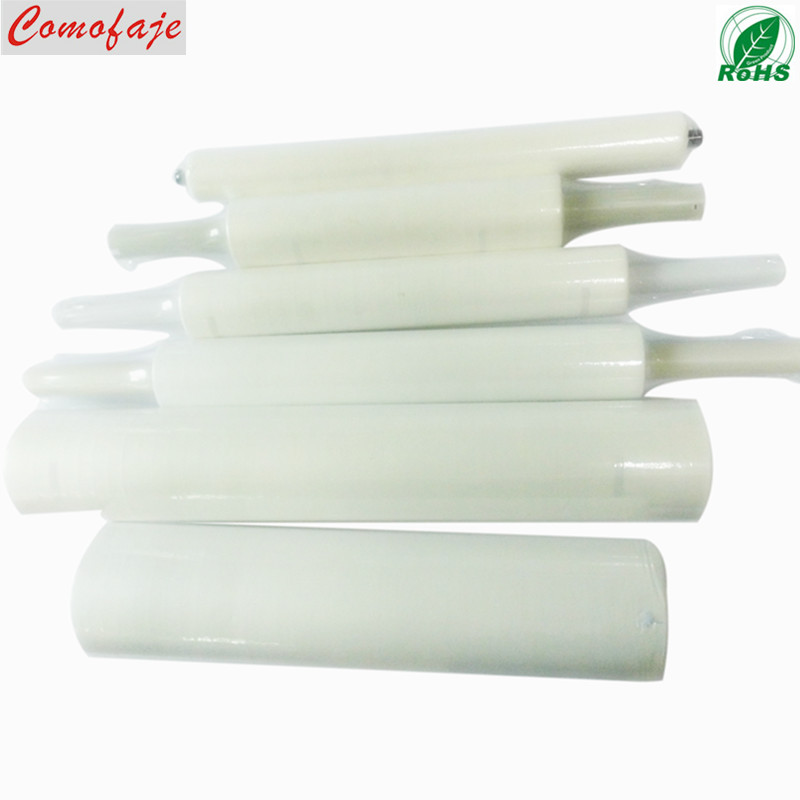

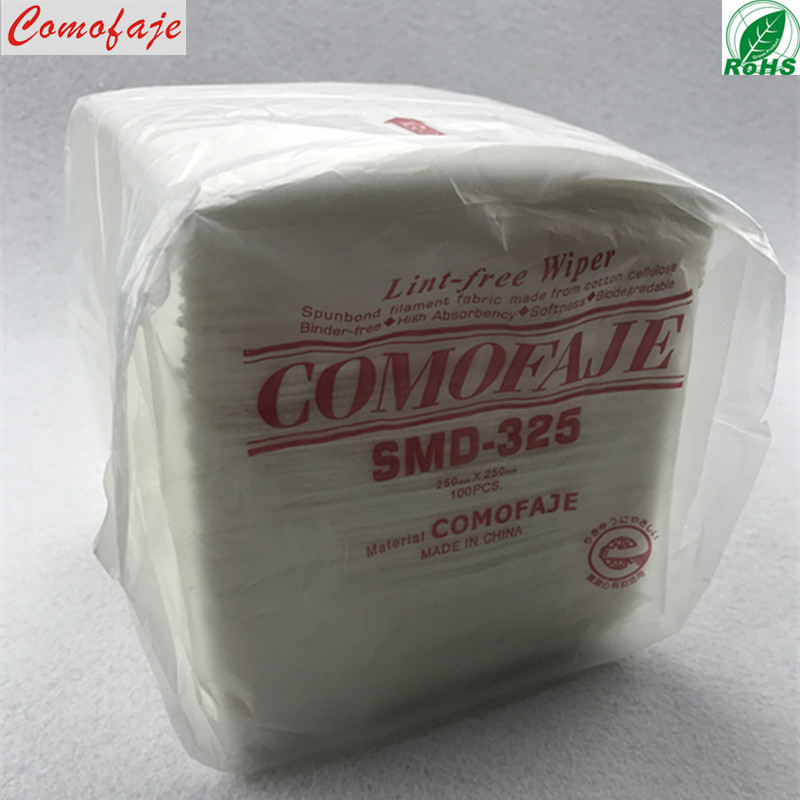

SMT stencil clean roll	SMT Wiper
