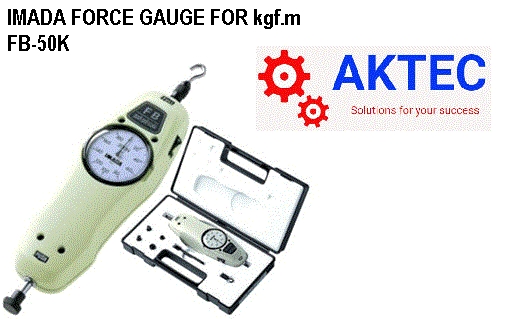

Máy đo lực kéo nén IMADA FB-50K
Thiết bị đo lực kéo nén IMADA FB-50K
|
Description:
|
|
Model No. FB50K,
IMADA, FORCE GAUGE FB/FS-KITS FOR kgf.m., FB-50K
Applications.
．Measuring of the contact pressure for touch panel or keyboard.
．Measuring of the bonding strength of adhesive tapes and the peel strength of adhesive sheets.
．Digital force gauges are more suitable for measuring rapid change of the force such as impact test.
Features.
．All models are equipped with Peak Hold function which captures peak force.
．Zero adjustment function for tare weight allows the adjustments of attachment’s weight.
Specifications.
|
Model
|
FB-K
|
|
Stroke
|
10 mm
|
|
Measuring units
|
Refer to the following tables.
|
|
Display features
|
Track and peak mode (Selectable)
|
|
Graduation
|
100 lines*Remark1.
|
|
Accuracy
|
+/-0.3% of F.S
|
|
Operating temperature range
|
0～+40 degree Celsius
|
|
Weight (approx.)
|
580g *** (FB-10N) Remark3.
|
|
Accessories
|
6 attachments Carrying case.
|
|
Remark:
|
1. *120 lines for 3K, 30K, 300N,30lb, 300K, 300N, 300lb.
|
| |
2. **150 lines for 3K, 30K.
|
| |
3. *** As the weight differs depending on its capacity, the above is just of main model numbers.
|
FB/FS Series: Steady Accuracy, Affordable Price Popular Type.
FS Series (kg unit graduation: 100 lines ＊120 lines ) Note 1.
|
Model number
|
Capacity
|
Resolution
|
|
FB-50K
|
50 kgf
|
500 gf
|
Note 1. Prohibited to sell Japanese market due to Japanese Measurement standard law.
|
Caution.
．Do not apply excess force, torque, or impact on the measuring shaft.
．Do not use the gauge under the condition of the rapid temperature changes, high temperature, hogh humidity, near water and dusty place.
．Keep the gauge in the exclusive carrying case when it is not used.
．The use of the test stand made by Imada is recommeded for the stable measuring result.
．All information is subject to change without prior notice.
DIMENSIONS
+
