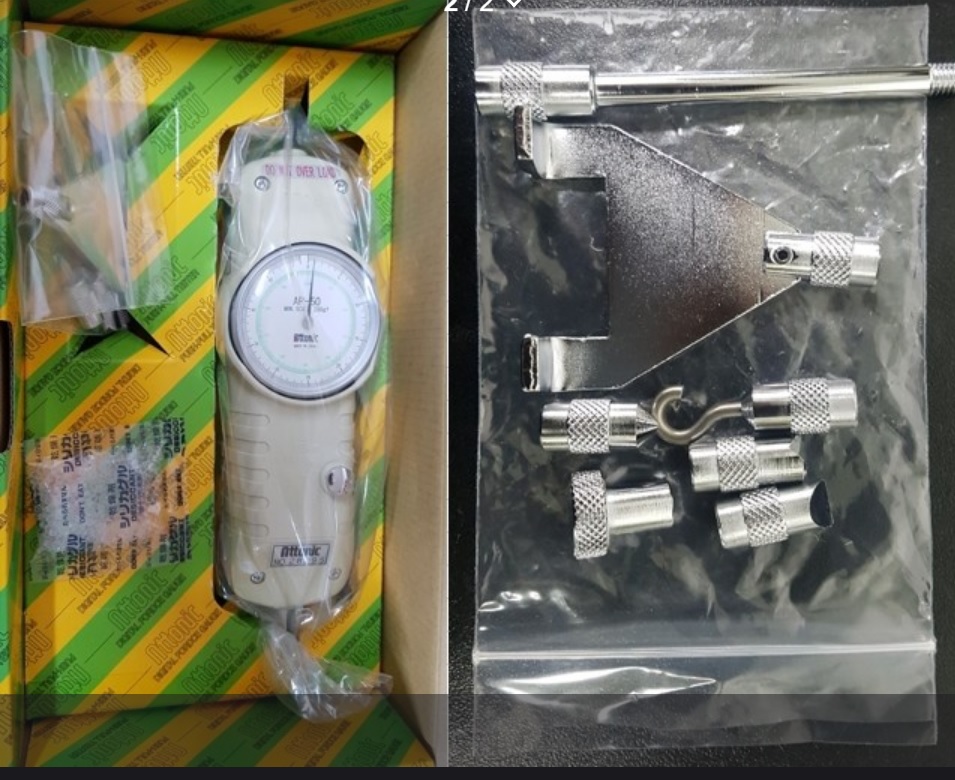

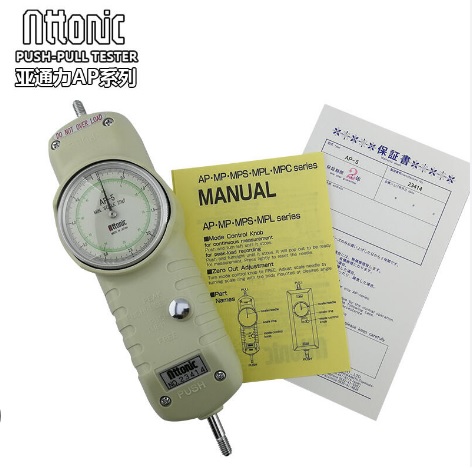

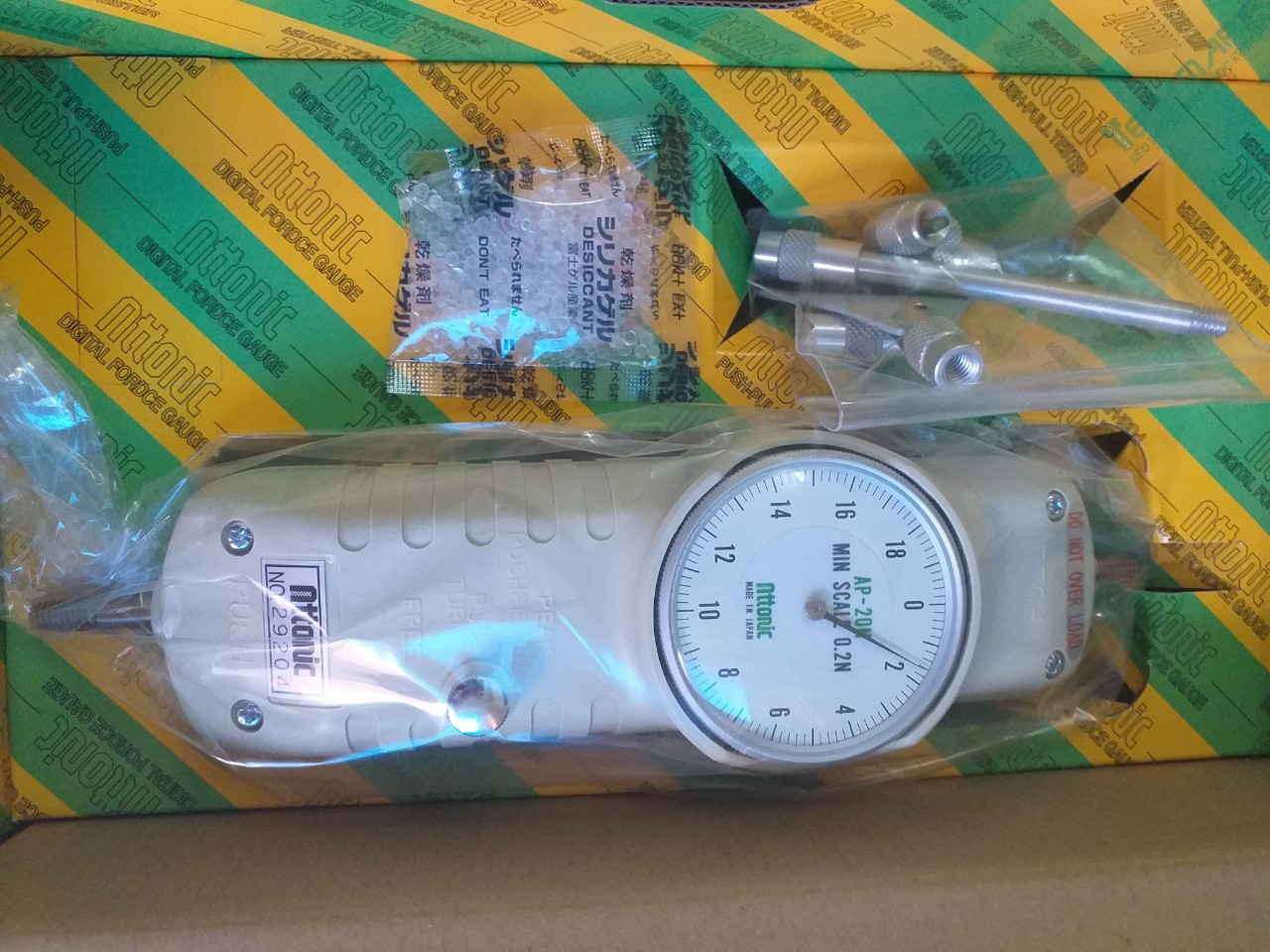

THIẾT BỊ ĐO LỰC KÉO-ĐẨY (PUSH-PULL TESTER)  ATTONIC AP-3N, AP-5N, AP-10N, AP-20N, AP-30N, AP-50N, AP-100N, AP-200N, AP-300N, AP-500N

For load tests of electronic parts, car parts, polymers, plastics, Electric cords, rubber, etc. This load tester provides you with quick and accurate data for more ecient quality control and assembly. *two years warranty for only AP-series *The example of test use Operation power test of a switch Strength test of solder Opening and closing power test of a door Destructive test op plastic etc.

Option

Carrying case(model: CC-50) Material Box: Cardboard (surface ･･･ crossing finish) Interior: Styrene foam Please use it to keep and to carry. Special steering wheel(model: HP-50) Push-pull is installed. It is a steering wheel to do the measurement that uses both hands. Special steering wheel externals dimensional drawing

Model Greates measured value Minimum scale value Accuracy Stroke Weight AP-3N 3Ｎ 0.02Ｎ ±0.2% of full-scale 10mm About 650g AP-5N 5Ｎ 0.05Ｎ AP-10N 10Ｎ 0.1Ｎ AP-20N 20Ｎ 0.2Ｎ AP-30N 30Ｎ 0.2Ｎ AP-50N 50Ｎ 0.5Ｎ AP-100N 100Ｎ 1Ｎ AP-200N 200Ｎ 2Ｎ AP-300N 300Ｎ 2Ｎ AP-500N 500Ｎ 5Ｎ
