Máy đo lực căng SEFAR Tensocheck 100
Digital tension measuring gauge

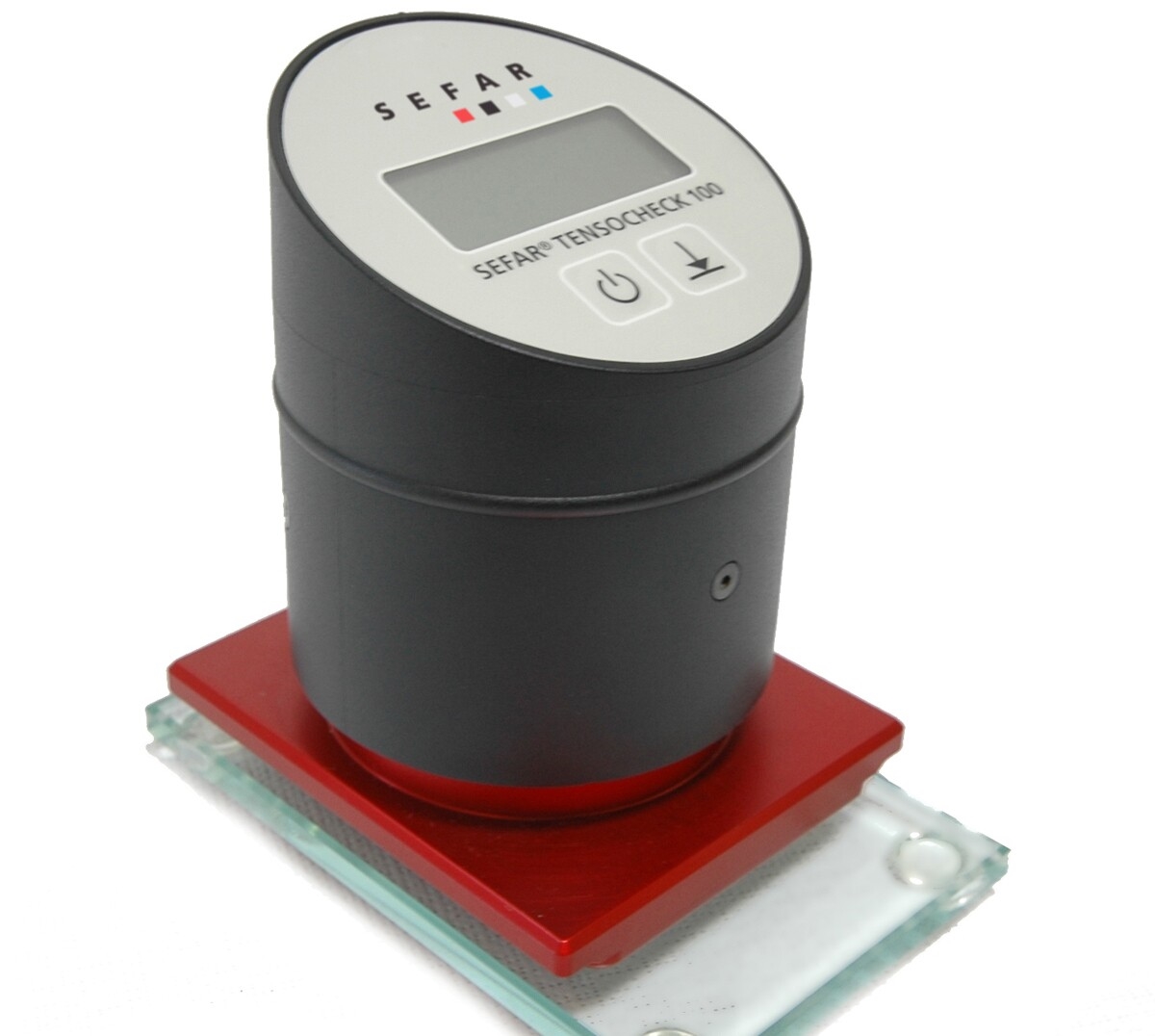

The SEFAR Tensoscheck 100 is a new mesh tension measuring gauge that operates electronically. It offers further interesting and useful features, coupled with an excellent price-performance ratio.

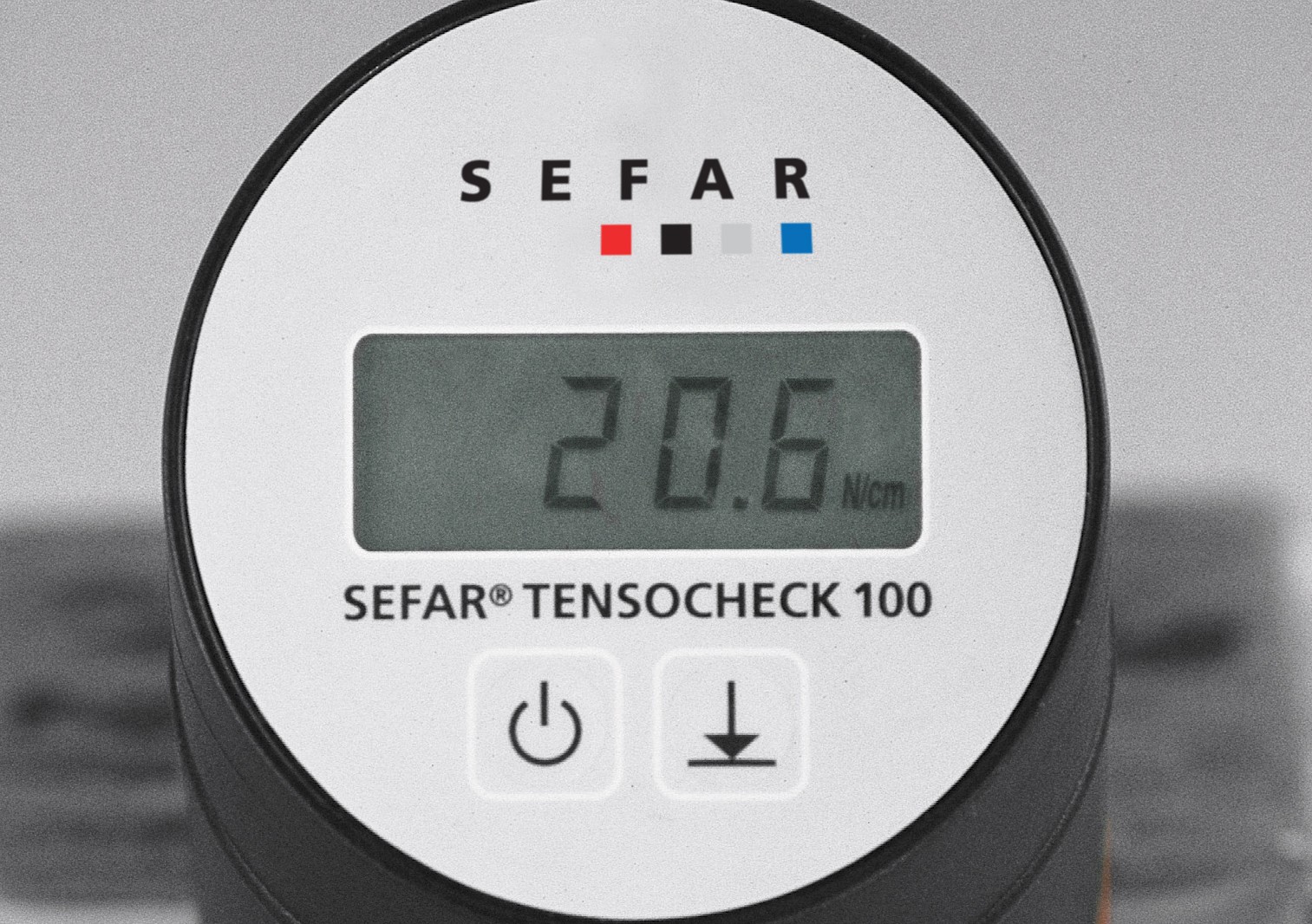

Digital display
The digits of the meausred values are 10 mm in size and covers the range of 4 to 60 N/cm. In addition, the reading direction is also the same as the measurement direction.
Specifications
|
Width |
80 mm |
|
Lenght |
95 mm |
|
Height |
115 mm |
|
Weight |
1,01 kg (including battery) |
|
Battery |
9 V (6LR61) |
|
Measuring range |
4 – 50 N/cm |
|
Resolution |
0,2 N/cm (for the range < 30 N/cm) |
Tolerance
|
Measurement range |
10 – 19,8 N/cm = +/- 0,4 N/cm |
|
|
20 – 29,8 N/cm = +/- 0,6 N/cm |
|
|
30 – 39,5 N/cm = +/- 1,0 N/cm |
|
|
40 – 50,0 N/cm = +/- 1,5 N/cm |
Optional calibration plate
The calibration plate for regular checks of the measurement accuracy of the SEFAR Tensocheck100 guarantees maximum process reliability.
