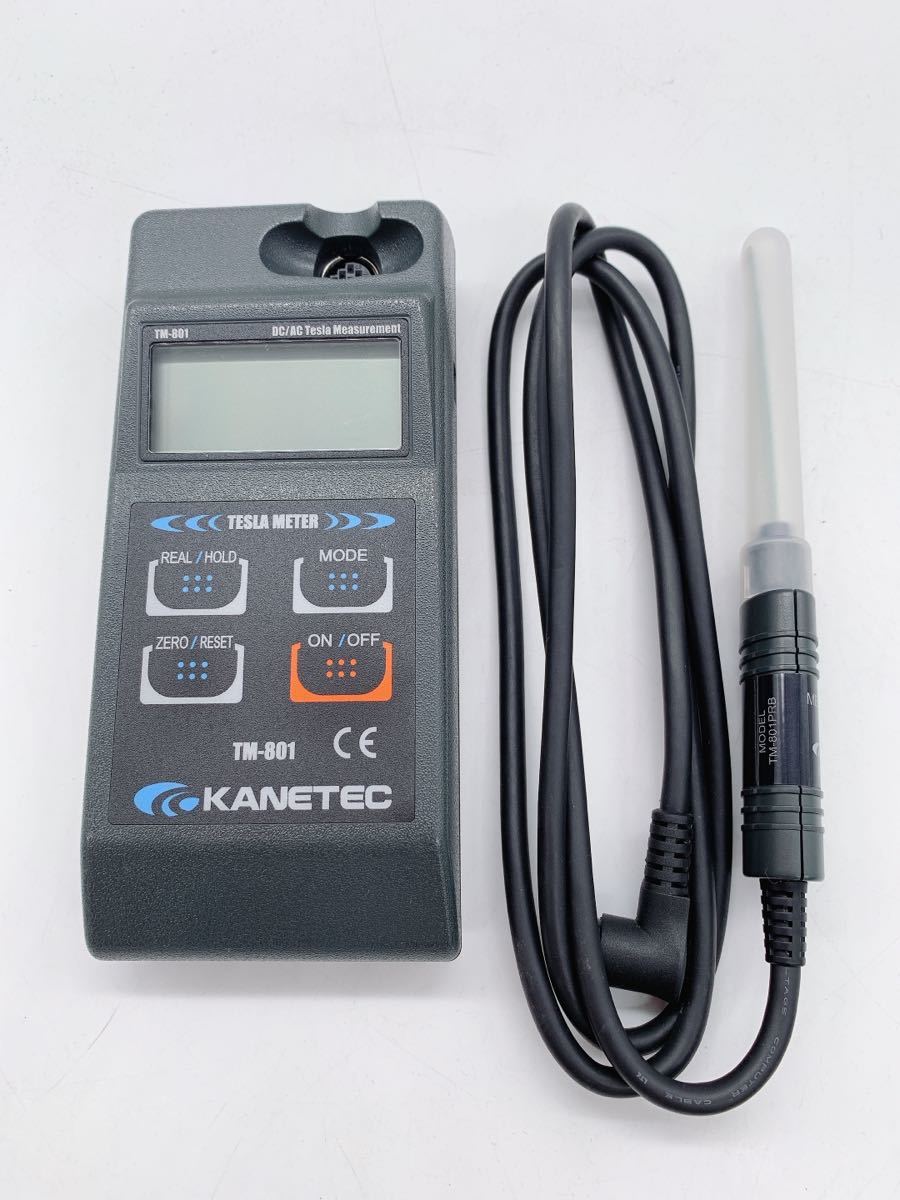

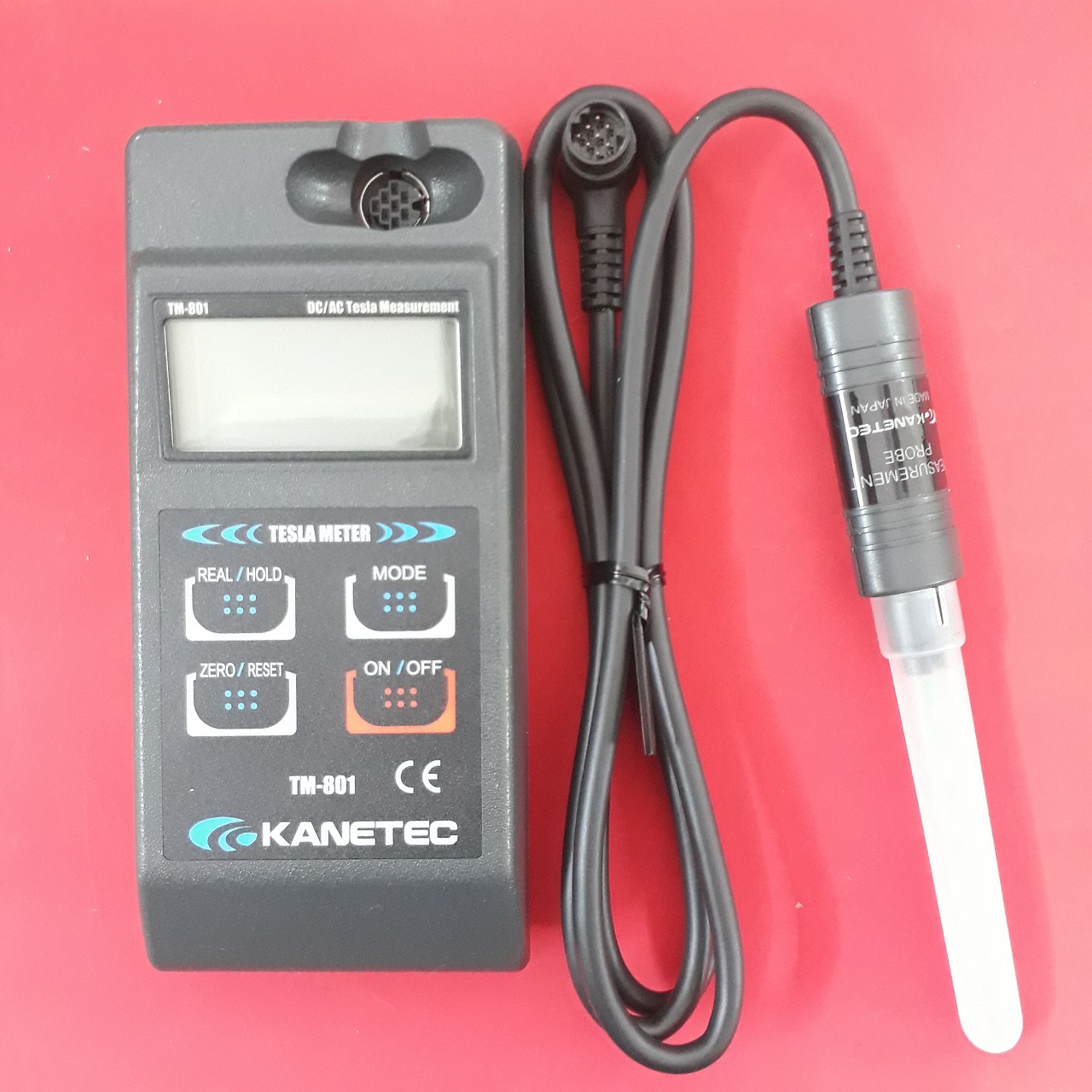

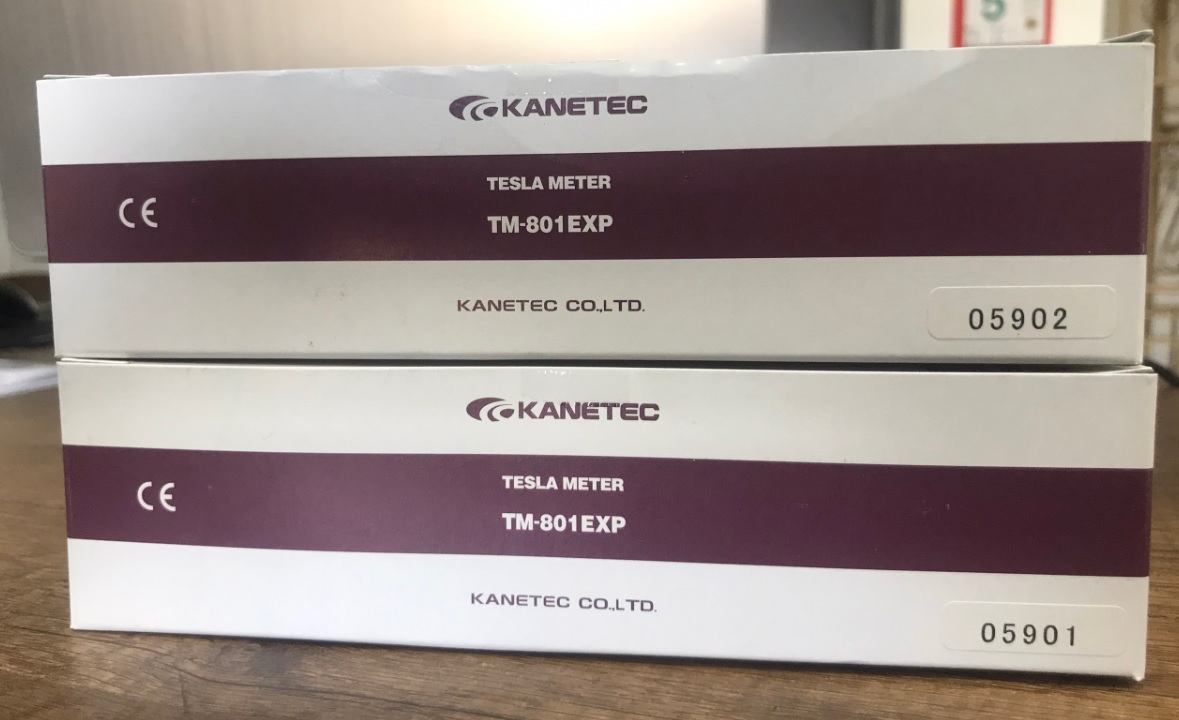

MÁY ĐO TỪ TÍNH TESLA-GAUSS KANETEC TM-801EXP
Cải thiện đáng kể về hiệu suất
trong khi vẫn giữ được khả năng sử dụng của TM-701
Model: TM-701 và TM-801 đã dừng sản xuất => Nâng cấp thay thế bằng TM-801EXP
Industry Standard for handheld devices
The TESLA meter is a practical, handy type Gaussmeter having digital display that has been developed based on KANETEC's long experience and achievements in the manufacture of magnetism-applied products.
From the user's point of view, this meter is designed for easy use by anyone by incorporating frequently used functions only.
The external output terminal is also provided to enable digital or analog outputs. Further, the probe has been made smaller for measurement in smaller space.
[Application]
- Measurement of residual magnetism in machined workpieces.
- Measurement of magnetic flux density in magnetism-applied products.
- Measurement of magnetic flux density of motors.
- Measurement of properties of magnetic materials.
[Features]
|
|
|
INPUT TERMINAL FOR
AC POWER SUPPLY |
|
INPUT TERMINAL FOR USB |
- High resolution mode accuracy in measurement of DC magnetic flux density improved.
- Frequency covering range in measurement of AC magnetic flux density expanded.(40 - 500 Hz)
- Sampling speed in HOLD mode increased by 1.5 times.
- Continuous operation time by use of a battery improved by 20% (130 hours → 160 hours).
- 3-way power supply usable: battery, AC adapter and USB feed.
- Digital output of measured data to PC by use of USB.
- Measurement commands controllable from PC by use of USB.
- PC free sample software renewed completely.
- Measured data is now "mT" exclusively in compliance with the unit specified by the Measurement Law.
- A wide measuring range from 0 to 3000 mT (0-30,000 G). (DC)
- In addition to DC magnetic flux density, AC magnetic flux density can be measured.
- The high resolution measuring mode ensures highly accurate measurement.
(Resolution 0.01 mT = 0.1 G)
- The use of sheet keys ensures high dustproof performance.
- The auto power off function prevents useless consumption of the battery.
- When the probe has been worn out, it can be replaced with a new one without troublesome calibration. (Optional)
>REFERENCE MAGNETIC FIELD FOR TESLA METER
>MEASUREMENT PROBE FOR TESLA METER |
Features
[mm(in)] |
Model |
TM-801EXP |
Function |
Zero reset |
Polarity judgment |
Max. detect value hold |
Auto power off Cancellable) |
Object to detect |
DC magnetic flux density AC magnetic flux density
Polarities ( N, S ) 40-500Hz |
Output |
Digital output (USB) / Analog output |
Unit of measurement |
mT/G both of two modes switchable |
Indication |
Detected value |
Digital |
Polarity |
Alphabets (N/S) |
Measurement range |
0 - 3000.0mT |
Operating temperature |
0 - +40 °C (104°F) |
Measurement mode
Measuring range
Resolution
Indication accuracy |
Measurement mode |
Measuring range |
Resolution |
Indication accuracy |
Display |
LCD |
DC X 1 * |
0 - 200.0mT |
0.1 mT |
± (5% of rdg.+ 3digit) |
Power Source |
Battery:Size AA(1.5 V) X 4 pieces
External power source 5 - 6 VDC(AC adapter / USB feed) |
200.1 - 3000.0mT |
1 mT |
± (5%of rdg.+10digit) |
Dimensions |
140(5.51) high X 64(2.51) wide X 30(1.18) thick |
DC X 10 |
0 - 300.00mT |
0.01mT |
± (3%of rdg.+ 5digit) |
Mass |
Approx. 250 g/0.55 lb (batteries & probe included) |
AC * |
0 - 150.00mT |
0.01 mT |
± (5%of rdg.+20digit) |
Accessories |
Probe(TM-801PRB), batteries, carrying case |
150.1 - 300.0mT |
0.1 mT |
Optional |
Axial probe (TM-801AXL) |
301.0 - 1500.0mT |
1mT |
Reference magnetic field(TM-SMF, TM-AMF) |
|
