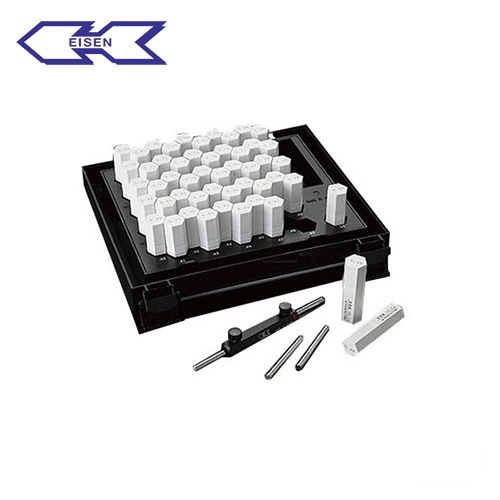

Dưỡng kiểm lỗ Pin gauge EISEN
18/11/2023
35 lượt xem
AKTEC Cung cấp Dưỡng kiểm lỗ Pin gauge EISEN theo set (hộp 51pcs) và theo kích thước lẻ (đơn vị chiếc)
1, Kích thước theo SET
| Set No. | Step(mm) | Set Size(mm) |
Number of pins |
Class0 Price |
Class1 Price |
|---|---|---|---|---|---|
| EP-00 | 0.01mm | 0.05 0.06… 0.19 0.20 | 16 | ||
| EP-0A | 0.01mm | 0.20 0.21… 0.49 0.50 | 31 | ||
| EP-0B | 0.01mm | 0.50 0.51… 0.99 1.00 | 51 | ||
| EP-1A | 0.01mm | 1.00 1.01… 1.49 1.50 | 51 | ||
| EP-1B | 0.01mm | 1.50 1.51… 1.99 2.00 | 51 | ||
| EP-2A | 0.01mm | 2.00 2.01… 2.49 2.50 | 51 | ||
| EP-2B | 0.01mm | 2.50 2.51… 2.99 3.00 | 51 | ||
| EP-3A | 0.01mm | 3.00 3.01… 3.49 3.50 | 51 | ||
| EP-3B | 0.01mm | 3.50 3.51… 3.99 4.00 | 51 | ||
| EP-4A | 0.01mm | 4.00 4.01… 4.49 4.50 | 51 | ||
| EP-4B | 0.01mm | 4.50 4.51… 4.99 5.00 | 51 | ||
| EP-5A | 0.01mm | 5.00 5.01… 5.49 5.50 | 51 | ||
| EP-5B | 0.01mm | 5.50 5.51… 5.99 6.00 | 51 | ||
| EP-6A | 0.01mm | 6.00 6.01… 6.49 6.50 | 51 | ||
| EP-6B | 0.01mm | 6.50 6.51… 6.99 7.00 | 51 | ||
| EP-7A | 0.01mm | 7.00 7.01… 7.49 7.50 | 51 | ||
| EP-7B | 0.01mm | 7.50 7.51… 7.99 8.00 | 51 | ||
| EP-8A | 0.01mm | 8.00 8.01… 8.49 8.50 | 51 | ||
| EP-8B | 0.01mm | 8.50 8.51… 8.99 9.00 | 51 | ||
| EP-9A | 0.01mm | 9.00 9.01… 9.49 9.50 | 51 | ||
| EP-9B | 0.01mm | 9.50 9.51… 9.99 10.00 | 51 | ||
| EP-10A | 0.01mm | 10.00 10.01… 10.49 10.50 | 51 | ||
| EP-10B | 0.01mm | 10.50 10.51… 10.99 11.00 | 51 | ||
| EP-11A | 0.01mm | 11.00 11.01… 11.49 11.50 | 51 | ||
| EP-11B | 0.01mm | 11.50 11.51… 11.99 12.00 | 51 | ||
| EP-12A | 0.01mm | 12.00 12.01… 12.49 12.50 | 51 | ||
| EP-12B | 0.01mm | 12.50 12.51… 12.99 13.00 | 51 | ||
| EP-13A | 0.01mm | 13.00 13.01… 13.49 13.50 | 51 | ||
| EP-13B | 0.01mm | 13.50 13.51… 13.99 14.00 | 51 | ||
| EP-14A | 0.01mm | 14.00 14.01… 14.49 14.50 | 51 | ||
| EP-14B | 0.01mm | 14.50 14.51… 14.99 15.00 | 51 | ||
| EP-15A | 0.01mm | 15.00 15.01… 15.49 15.50 | 51 | ||
| EP-15B | 0.01mm | 15.50 15.51… 15.99 16.00 | 51 | ||
| EP-16A | 0.01mm | 16.00 16.01… 16.49 16.50 | 51 | ||
| EP-16B | 0.01mm | 16.50 16.51… 16.99 17.00 | 51 | ||
| EP-17A | 0.01mm | 17.00 17.01… 17.49 17.50 | 51 | ||
| EP-17B | 0.01mm | 17.50 17.51… 17.99 18.00 | 51 | ||
| EP-18A | 0.01mm | 18.00 18.01… 18.49 18.50 | 51 | ||
| EP-18B | 0.01mm | 18.50 18.51… 18.99 19.00 | 51 | ||
| EP-19A | 0.01mm | 19.00 19.01… 19.49 19.50 | 51 | ||
| EP-19B | 0.01mm | 19.50 19.51… 19.99 20.00 | 51 |
2, Kích thước theo chiếc
AKTEC có đủ kích thước pin gauge lẻ
